TECHNICAL DATA:
|
Lenght
|
15m
|
|
Widht
|
4,5m
|
|
Overall height with main railing
|
4,5m
|
|
Transport height
|
3,7m
|
|
Height from the water level
|
4m
|
|
Weight (approx)
|
15.000kg
|
|
Maximum number of passengers
|
12
|
|
Number of berths
|
6-10
|
|
Maximum outboard engines power
|
2x60koni
|
|
Category
|
D
|
INTRODUCTION

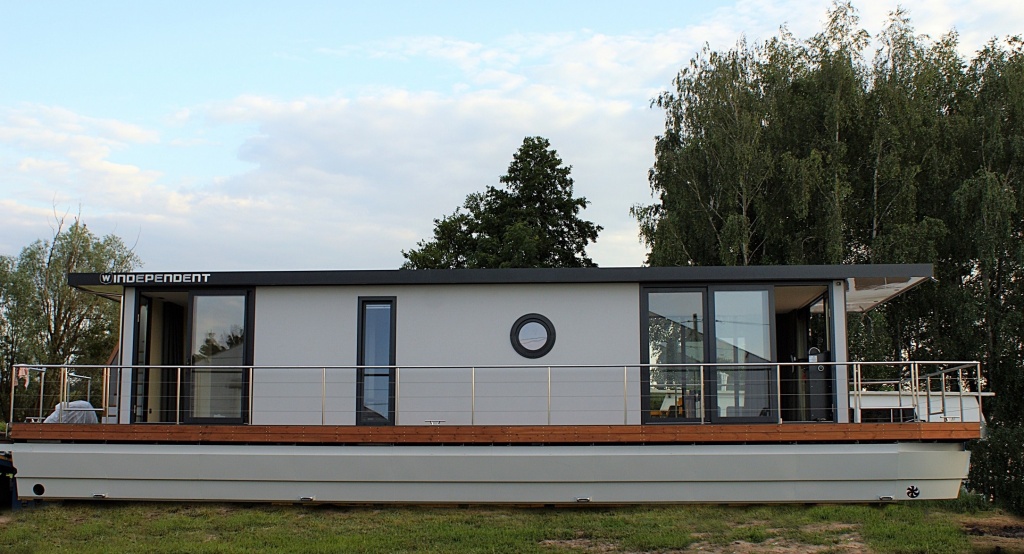

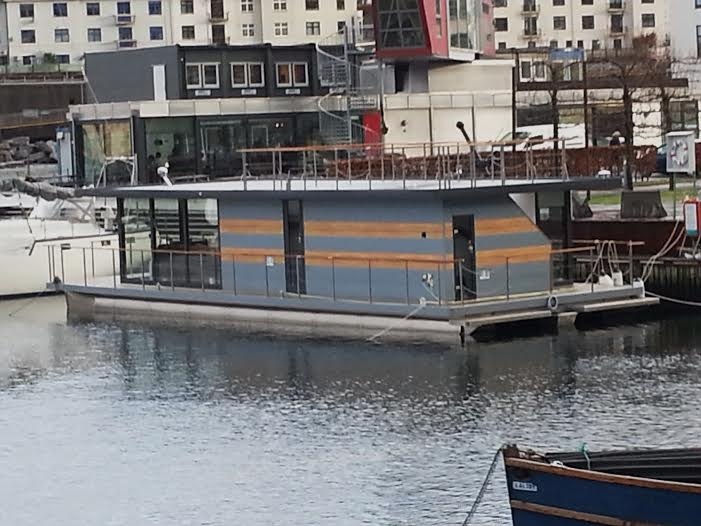

Comfortable catamaran with the large residential space adapted for swimming on large lakes.
It is possible to order a unit with the CE design category "D".
We recommend the installation of 2 outboard engines from Yamaha or Mercury.
Large number of additional options allows you to build an individual project tailored to your needs.
HULLS
We weld 4mm thick aluminum 5754 (model F or G) to produce high displacement and stiffness hulls. The size of the hull allows for placing large tanks and utilities in the openings. The float shape provides good nautical values, stability of the unit and batial stability.
CONSTRUCTION
Floors, walls and roof made of high quality polyester-glass laminates with a filling made of
polystyrene foam ensuring good thermal insulation.Cable trays, plywood reinforcements have been inserted, and special aluminum profiles are used for mounting.
STANDARD EQUIPMENT:
- Outboard engine Mercury 60HP hightrust
- Fuel tank 100l+ gauge
- Clean water tank 420l +gauge
- Black water tank 420l +gauge
- Diesel tabk 200l + gauge
- Underfloor heating and hot water - Diesel heating system
- Engine battery 65Ah
- Service battery 4x230Ah
- 230V port connector with 50A charger, Inverter 3000W (Victron Multiplus) 6 sockets 230V inside the object
- Navigation and anchor lighting
- Outdoor LED lights
- Indoor LED lights
- Bluetooth radio+ 4 speakers
- Rear view camera with screen 7"
- 4-steps water ladder
- Interior floors made of vinyl panels
- External floors of lower terraces made of durable composite boards

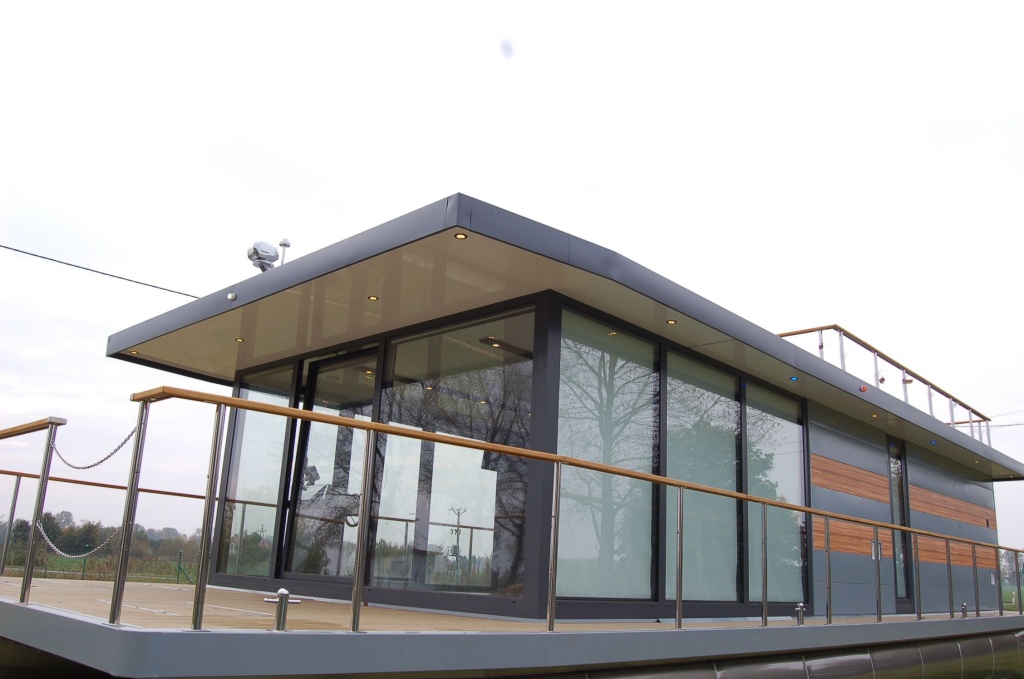

- Front/rear railing, handrailing made of stainlees steel

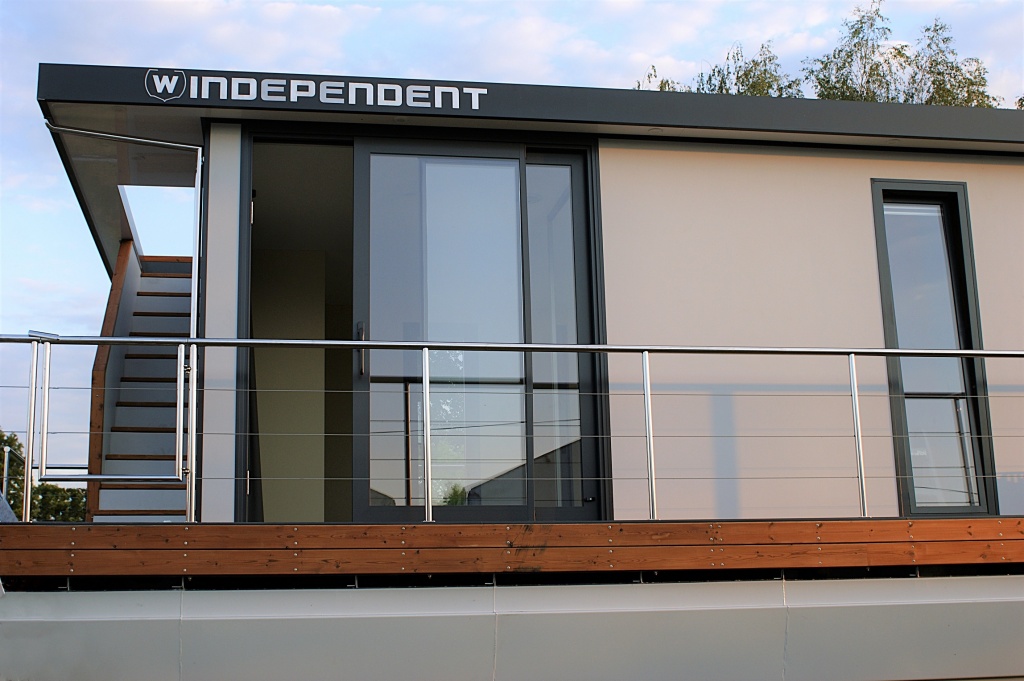

- Insulated windows and doors in aluminum frames with 2x4mm glazing. Tilt and turn windows and doors equipped with mosquito nets in aluminum frames.
-Siling inner doors ( standard 40mm thick)
-Roller blinds in windows, curtains in doors ( color to choose)
- Stainlees cleats 250mm x6pcs

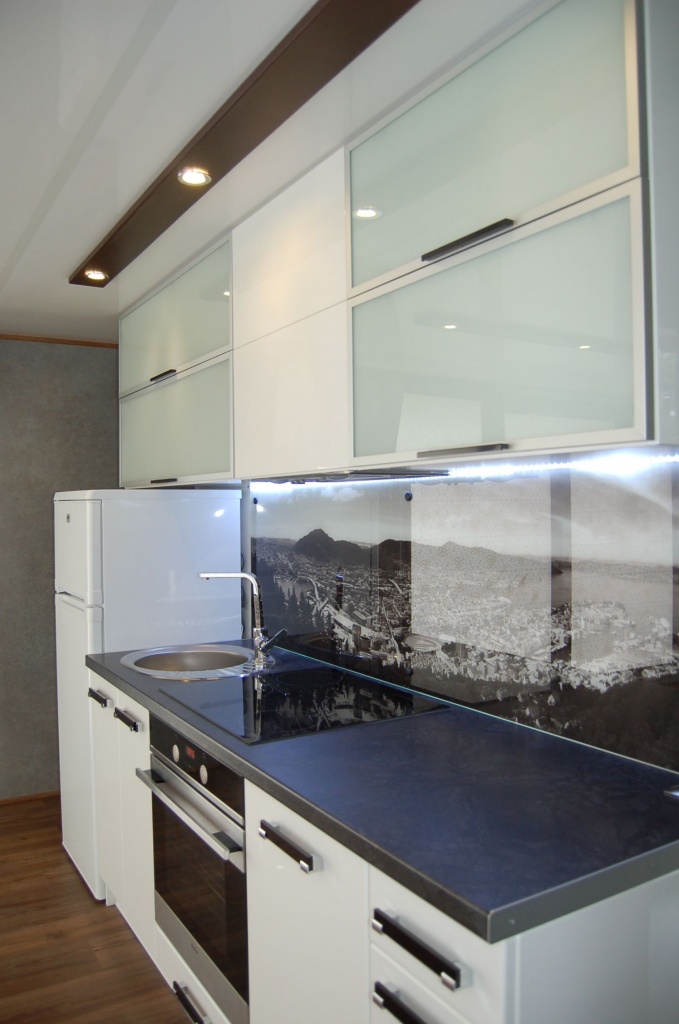

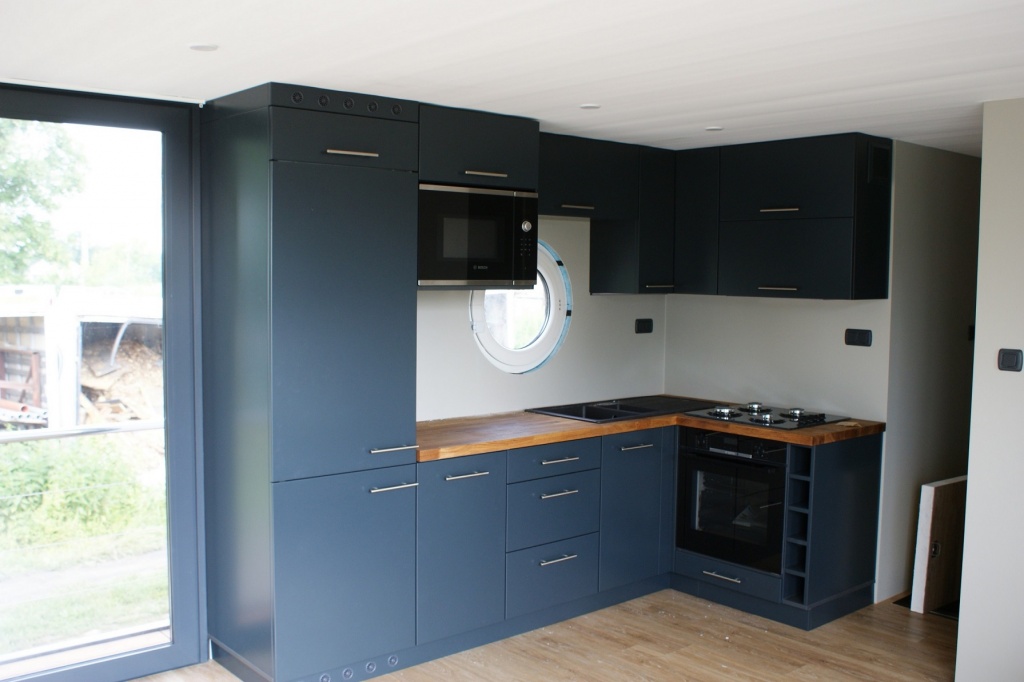

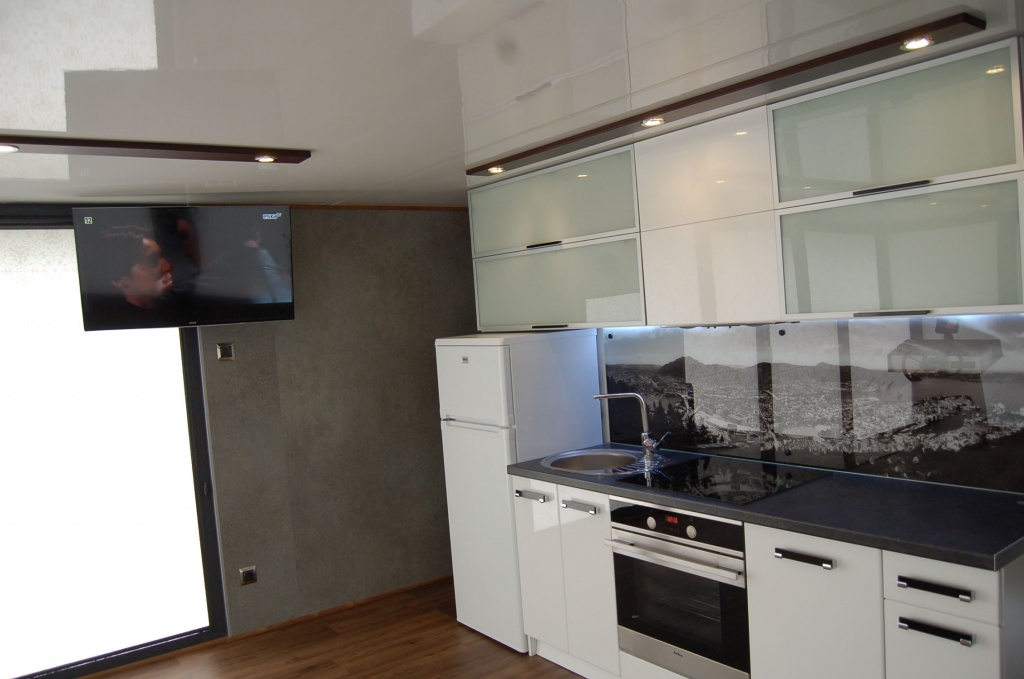

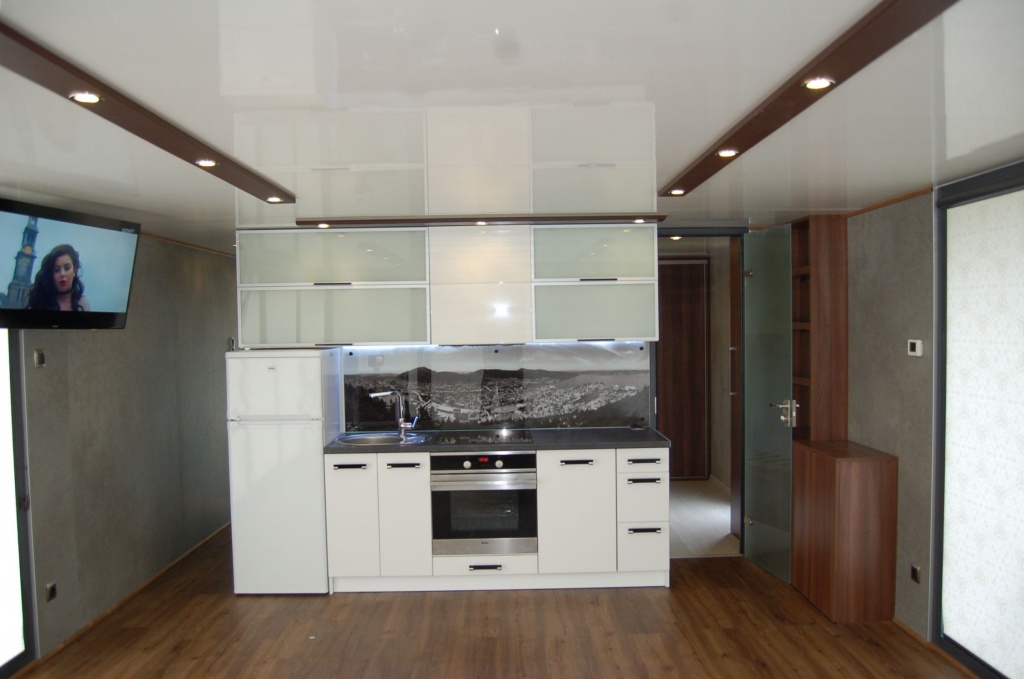

- Set of lacquered kitchen furniture ( RAL),under-counter refrigerator, two-burner diesel stove and canopy, sink
- Sofa in the livingroom, table with chairs

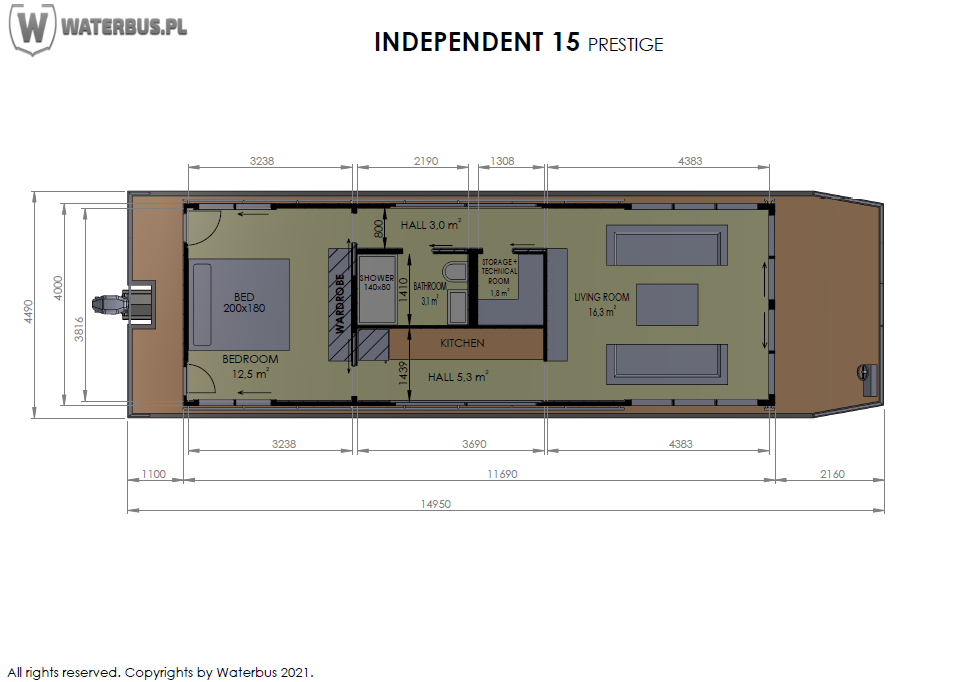

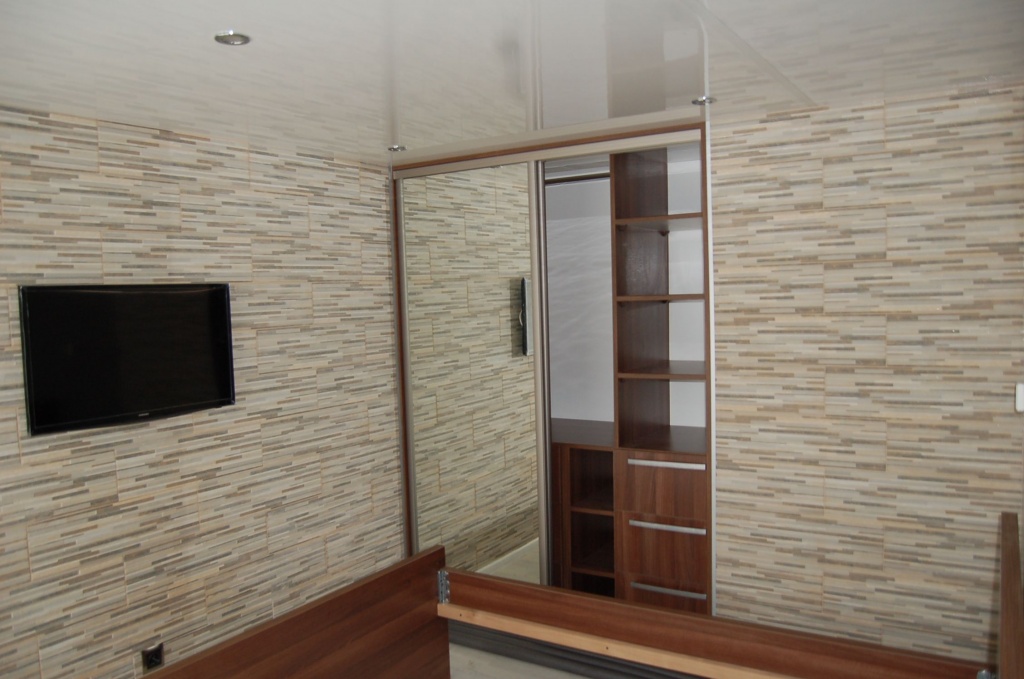

- Master bedroom: bed 200x160cm, 2 cabinets ( in standard price 1 bedroom)

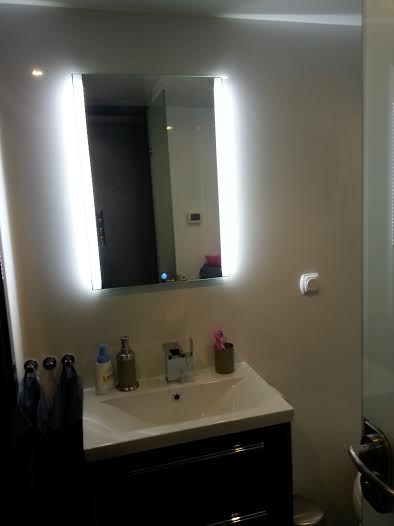

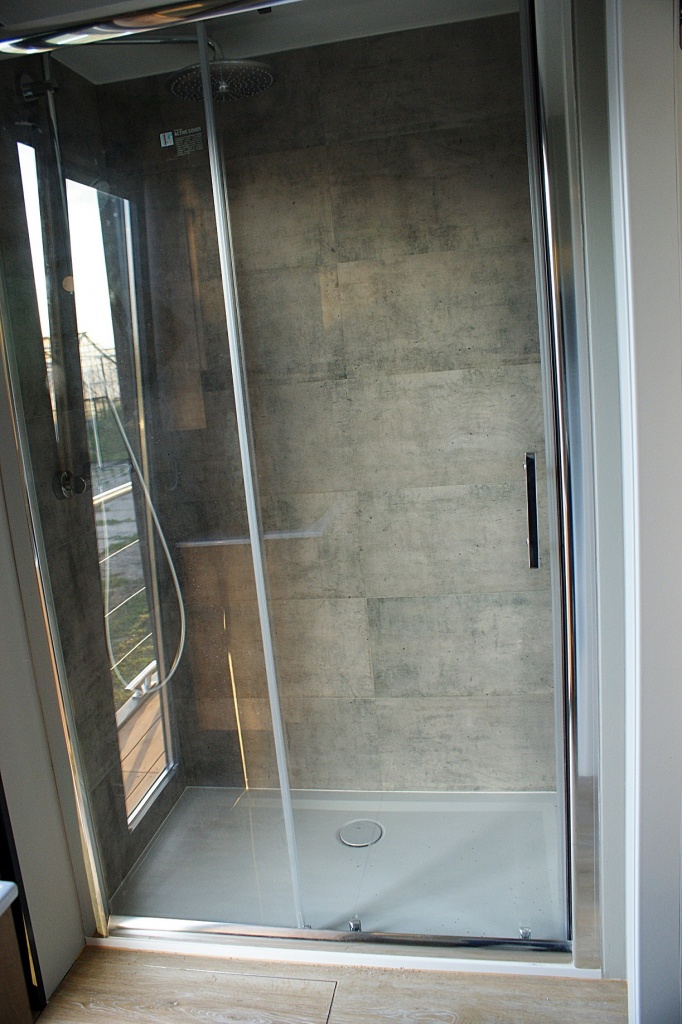

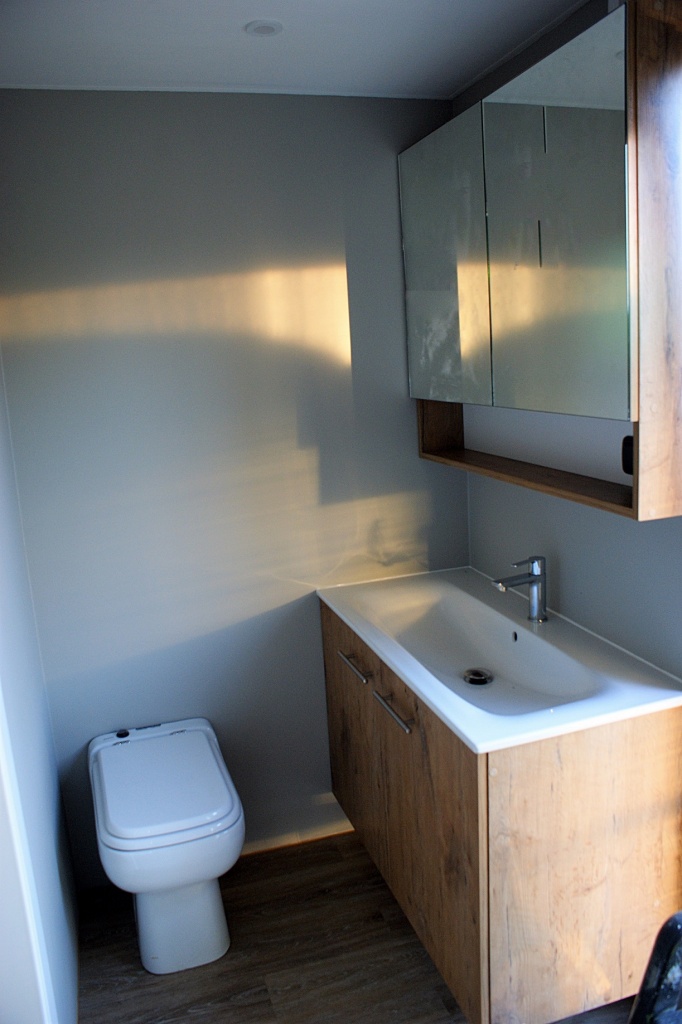

- Bathroom: equipped with shower 140x80cm, toilet, cabinet, washbasin, mirror
EXTRA EQUIPMENT:
| 5m wide (2 side terraces)- extra payment to the standard |
5 410 € |

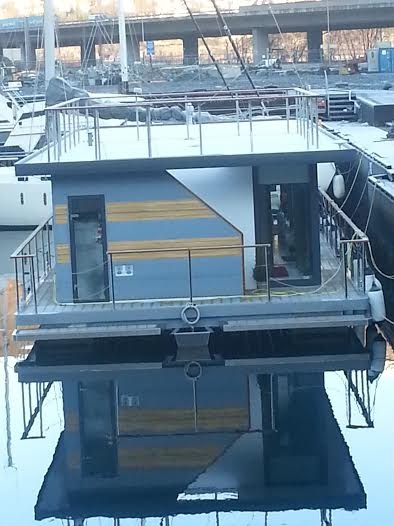

| Upper terrace (price includes: usable upper terrace with composite board, stairs, railing) |
14 720 € |
| Complete railing ( only for 5 me wide) |
2 440 € |
| Additional outboard engine 60HP |
12 540 € |

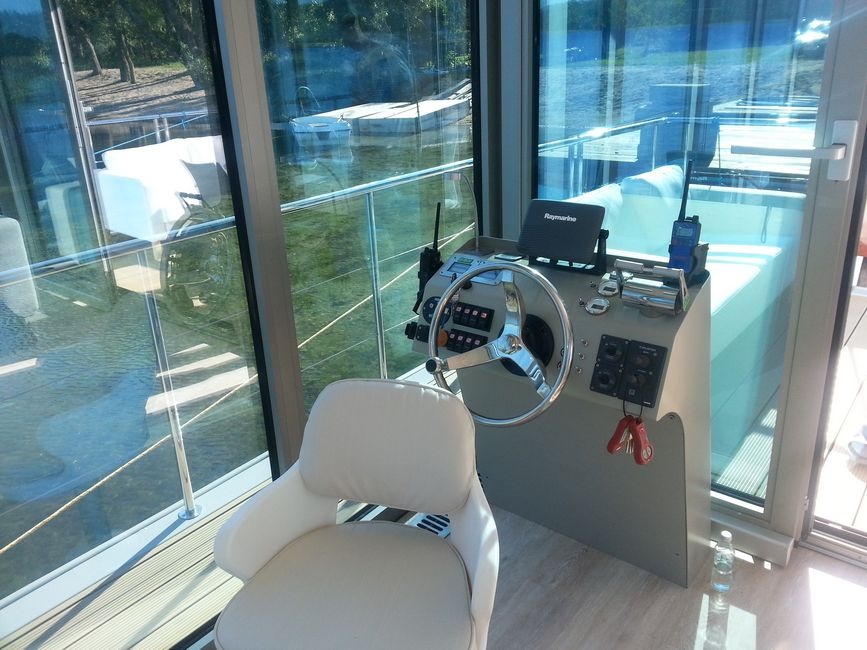

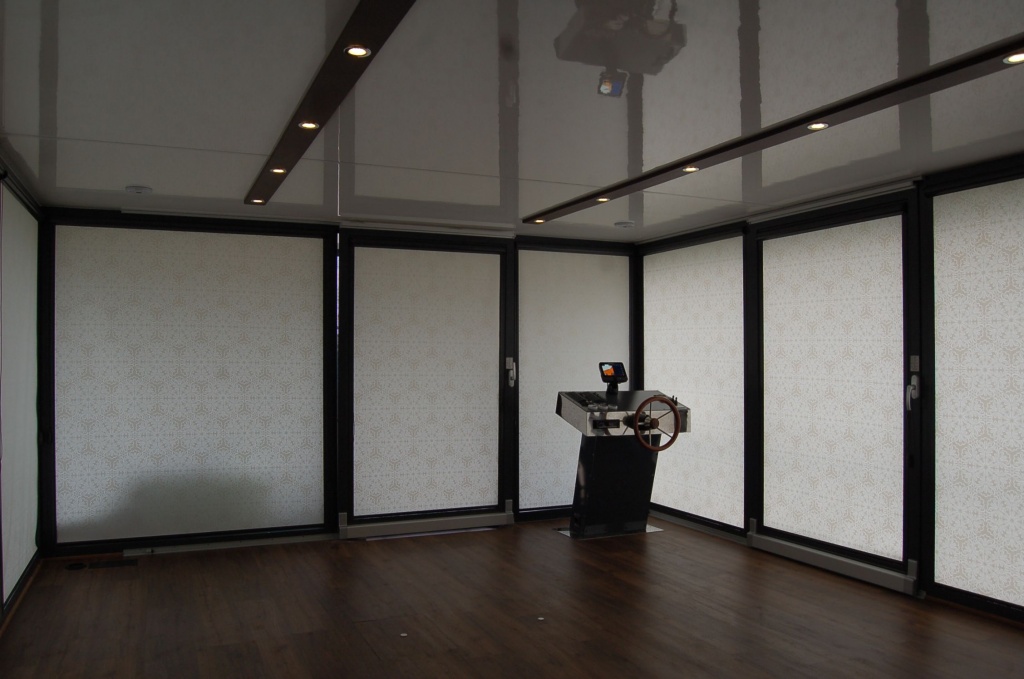

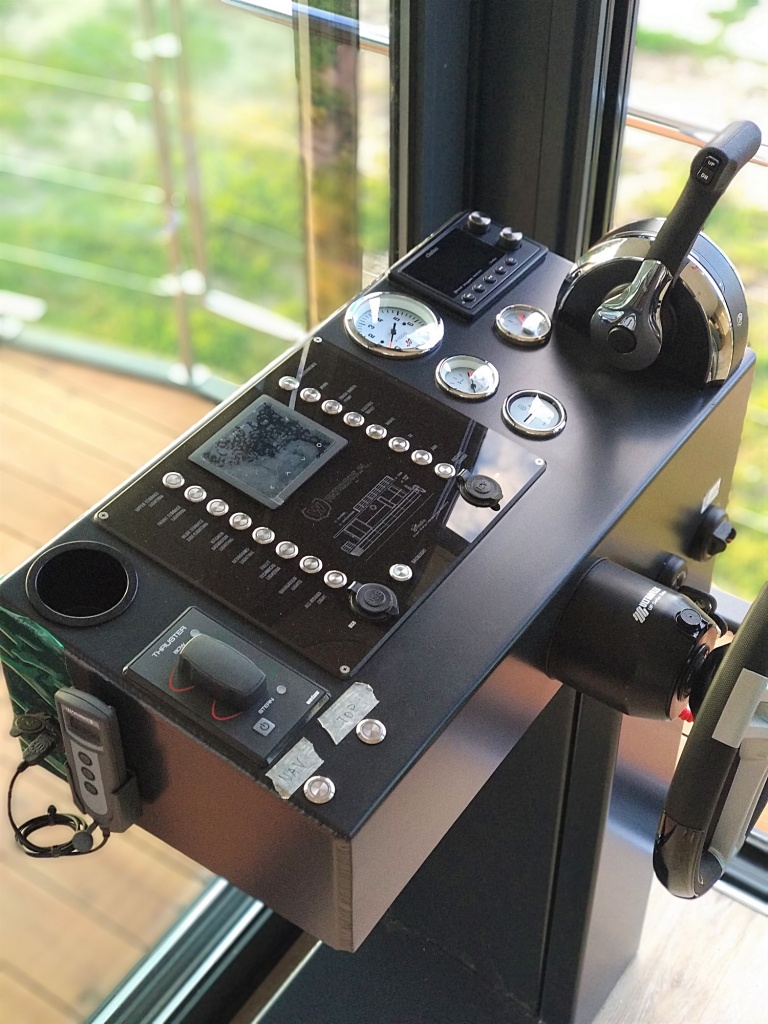

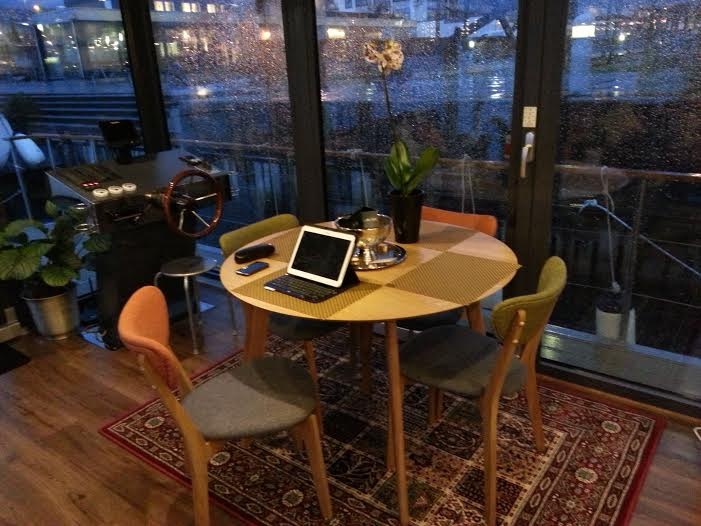

| Steering console in the livingroom |
460 € |
| Additional hight cabinet in the bathroom |
660 € |
| Front side sliding window (only in livingroom - price per piece) |
1 190 € |
| The ability to change the fuel tank from 100l to 200l |
720 € |
| Bow thruster 185 mm |
4 070 € |
| Stern thruster 185 mm |
4 070 € |
| Electric anchor winch + chain + anchor |
3 830 € |
| Solar package 8 x 330W panels minimum |
5 150 € |
| Sewage works and dirty water (Enteron 50) |
12 650 € |
| Purification system to outboard water |
6 780 € |
| Depth sounder with GPS 7” |
2 180 € |
| Composite decking -version 5m |
1 265 € |
| Additional lacquered aluminum locker (for outdoor use) |
925 € |
| Connection to the washing machine (only available in bathroom B version) |
330 € |

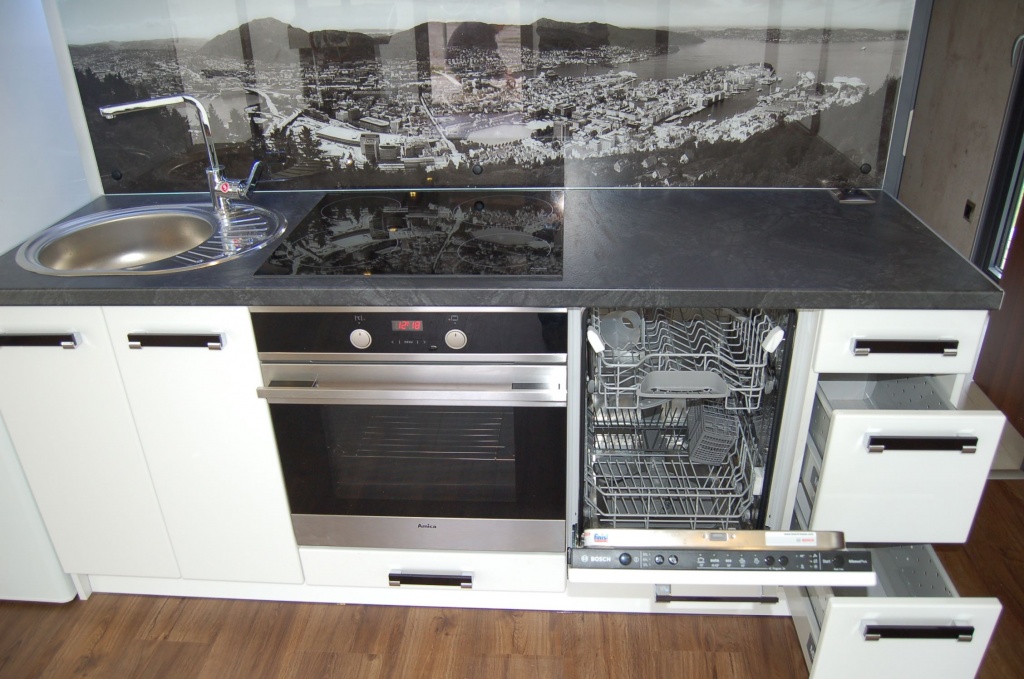

| Dishwasher 45cm with in-cabinet connection |
1 320 € |
| Electric bow searchlight |
860 € |
| Painting hulls with polyurethane paint |
5 020 € |
| Additional rear terrace |
2 380 € |
| Life saving and firefighting equipment (10 life jackets, wheel, 2 fire extinguishers) |
860 € |
| Mooring equipment (2 x mooring rope, oar, boat hook, 4 x fender) |
590 € |
| Changing the color of the external facade |
1 720 € |
the price after receiving the request for quotation
